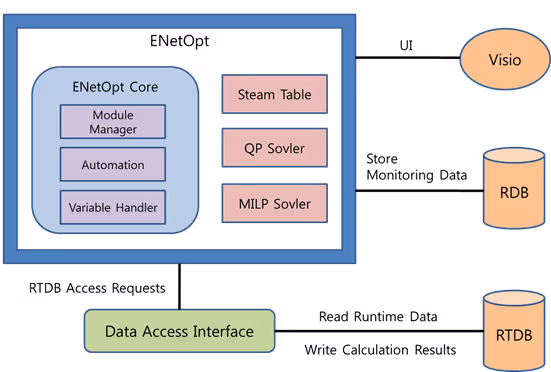

System Architecture
ENetOPT is composed of following modules.
- Module Manager : equipment parameter, RTDB tag management module
- Automation : periodic network balance, optimization module
- Variable Handler : local-variable, scripts or calculation managing module.
- Steam Table : Enthalpy calculation module.
- QP Solver : QP Solver energy-network balancing module.
- MILP Solver : MILP Solver energy-network optimization module.
- Data Access Interface : RTDB interfacing module.
- Visio : external program that provides a user interaction capability.
- RDB : external RDB(Relational Database) server where ENetOPT result is managed.
- RTDB : external RTDB (Real Time Database) server which interfaces on-line field data.

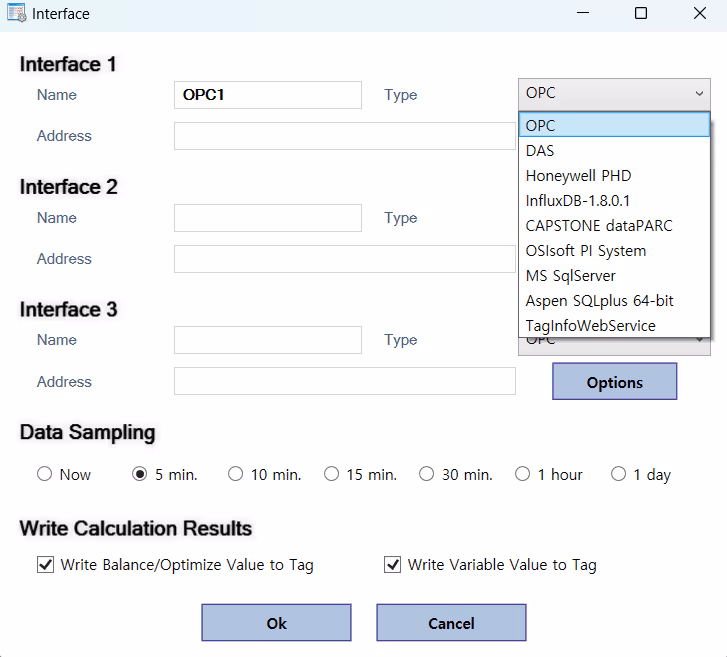

Field Data Interface
ENetOPT allows for the integration and utilization of real-time or near real-time data from field devices or sensors.
- OPC, DAS, PHD, InfluxDB, dataPARC, PI, etc... interface
- It can connect multiple databases simultaneously so that even though each process section has a different interface system.
- Adapt and optimize the energy network in real-time, leading to improved operational efficiency, cost savings, and better overall performance
